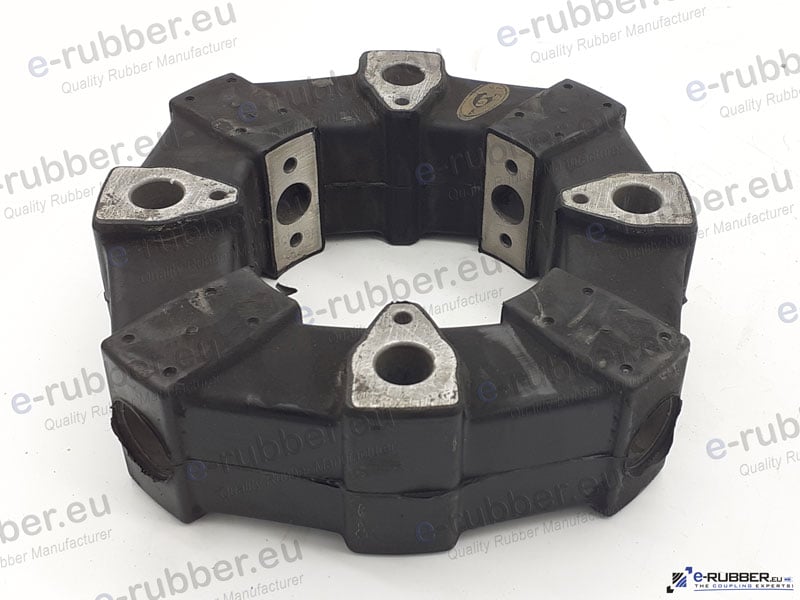

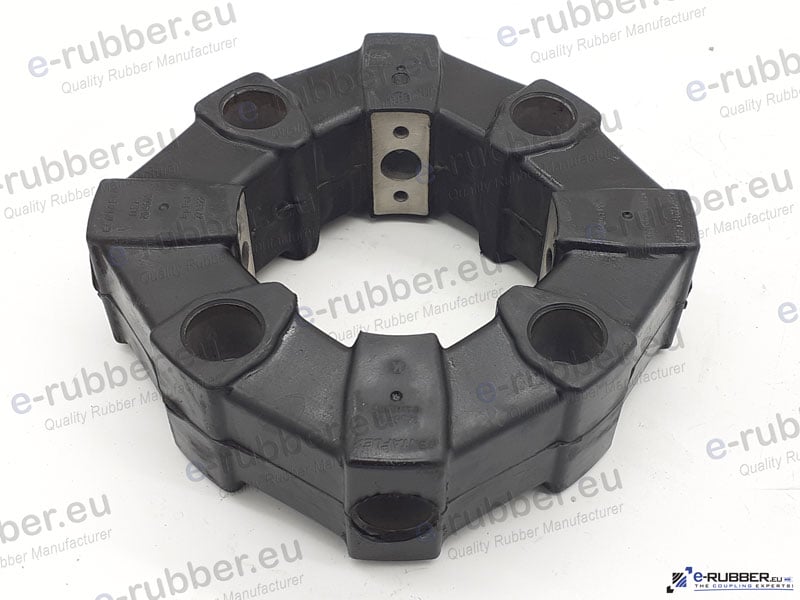

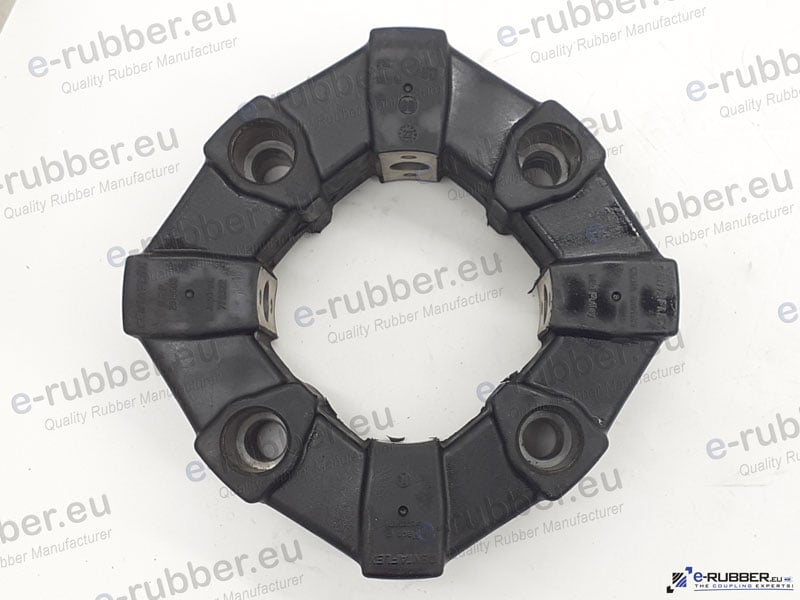

Centaflex 80A Original

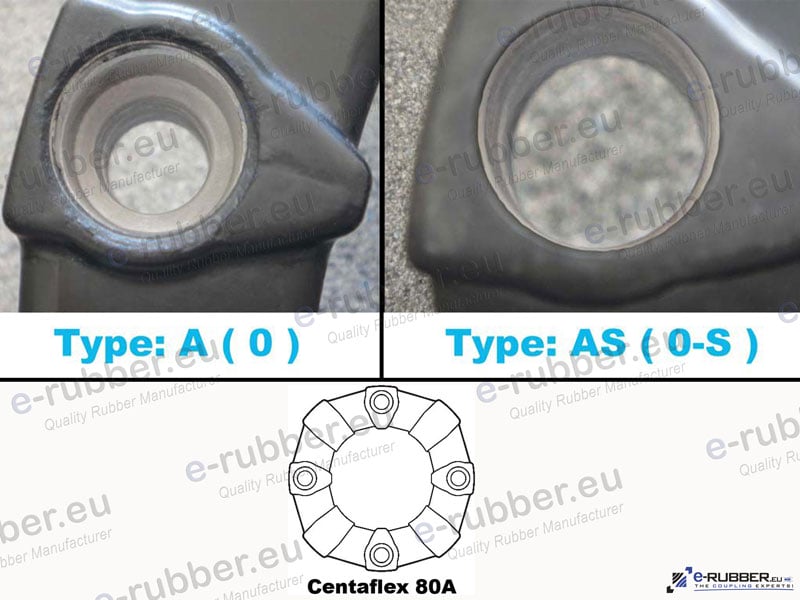

Centaflex 80A type 0 Original

Dimensions:
A: 65
d3: 205
E: 61
G: 30.5
HD: 100
P1: 34.5
P2: 34.5
M: 16

Technical Specifications:
Rubber Quality [Shore A]: 60
Nominal torque [TKN] kNm: 0.900
Maximum torque [TKmax] kNm: 2.100
Continuous vibratory torque [TKW] kNm: 0.320
Permissible power loss [PKV] W]: 100
Dynamic torsional stiffness [CTdyn] kNm/rad: 25.00

Sold as is – Only the rubber Element – No bolts – No hub

All rubber elements are also available in NR 50 Shore, 60 Shore, or Silicone.

Original Spares marked with one or more of the following patents:
JPN PAT.778322
US PAT.3683643
DBP 2019608
